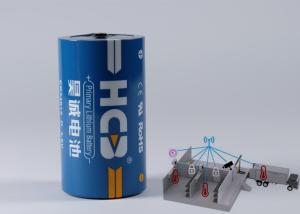

Bobbin Primary Lithium Li-Socl2 3.6 V Battery Er34615

Brand Name : HCB

Model Number : ER34615 Bobbin type D size

Certification : UN/CE/UL

Place of Origin : China

MOQ : 1K pcs

Price : contact with HCB battery

Payment Terms : T/T, L/C, PayPal

Supply Ability : two million unit per month

Delivery Time : 10 - 35days

Packaging Details : Special design for Air/Sea/Courier transportation

Model : D size bobbin type ER34615

Dimensions : φ34.2*61.5

Nominal capacity : 19000mAh

Maximum pulse discharge current : 600mA

Maximum continuous current : 300mA

Operating temperature range : -55°C~+85°C

Capacitor : ER34615+UPC1520, ER34615+UPC1550

Used for : Utility metering, Instrumentation, IoT, sensors, GPS asset tracking

Contact Now

Wide Temperature Range Long Life Primary Lithium Battery Solutions For Vaccine Storage Management

Nominal Capacity19000mAh
Battery discharged at continuous current 6.5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage3.6 V
Maximum Continuous Current300mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current600mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH

Operating Temperature-55℃ to +85℃
Battery DimensionSee drawing on pag
Max Weight105.0g
Self-discharge Rate1%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life10 years
Ambient temperature 23±2℃

Cell References Data

-Primary Lithium Battery ER34615

3.6V Lithium-thionyl chloride [Li-SOCl2] D-size bobbin cell


ELECTRICAL CHARACTERISTICS

Open circuit voltage (at 23±2°C) 3.65V


Nominal capacity 19000mAh

(At+25°C, battery discharged at continuous current 2mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. )


Maximum continuous current 300mA

(At+25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. )


Maximum pulse discharge current 600mA

(At+25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions. Consult HCB.


Storage (recommended) ≤30°C & ≤75%RH

(For more severe conditions, consult HCB)


Operating temperature range -55°C~+85°C
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. Consult HCB)


BENEFITS

  • High voltage response, stable during most of the lifetime of the application

  • Energy Density up to 830Wh/L

  • Wide operating temperature range(-40℃~+85℃)

  • Low Self-discharge Rate(less than 2% per year of storage at +20°C)


APPLICATIONS

Utility metering

Smart electricity meters, NB IoT gas meters, water meters, heat meters, calorimeters; automatic meter reading; prepayment meters


Tracking

Electronic toll collection; data loggers; On-board units; trucks, containers, trailers; animals; personal; GPS asset tracking; cold chain monitoring;


Automotive

Tire pressure monitoring systems; engine controllers; brake controllers; in-car computers; digital tachographs; belt straighteners


Alarm and security systems

Wireless alarms PIR; sensors/detectors; electronic safes; encryption systems


Industrial automation

Controllers; fault detectors; process logic control; Industrial PC’s


Office automation

Point of sale terminals; cash machines; telephone key systems; telephone exchange boards


Instrumentation

Electronic scales; vending machines; gambling machines; taximeters


Medical

Dispensers; implantable devices; infusion pumps


Off-shore

Beacons; buoys; oil drilling/MWD; life jacket lights

High end consumer

Ultral thin soft pack batteries, customized batteries

WARNING:

● Do Not Short Circuit ● Do Not Recharge ● Do Not Puncture ● Do Not Crush
● Do Not Dismantle ● Do Not Incinerate ● Do Not Mix New and Used Batteries ● Do Not Heat Above 100°C
